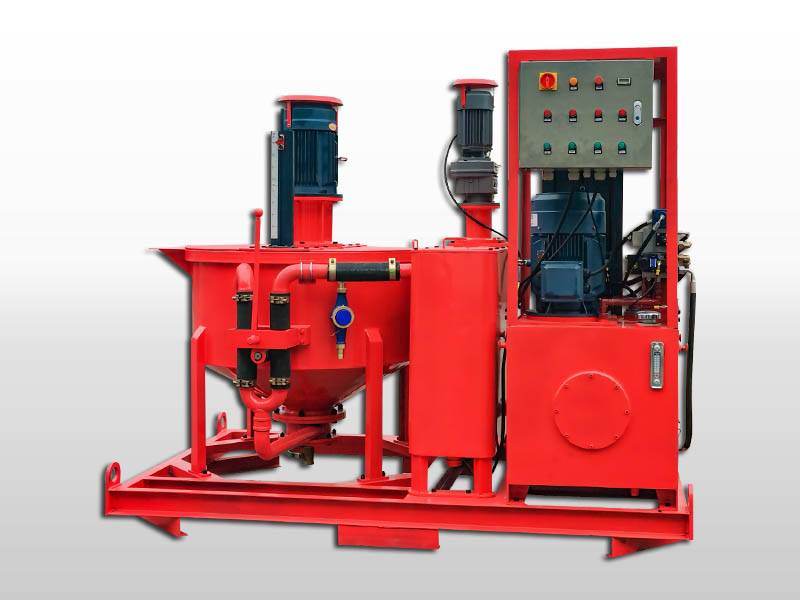

GGP300/300/75PI-E electric grout mixer pump
GGP300/300/75PI-E electric grout mixer pump is combination of mixer, rectangular agitator and piston grout pump in one plant. It is mainly used in municipal, highway, railway, hydropower, construction, mining and other construction site for grouting. 1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts.
2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting.
3. Construction - pavement under sealing, slab jacking and slab raising.
4. Marine - underwater foundations, piers, breakers, shoreline foundations.
5. Mining - tunnel lining, contact grouting, shaft waterproofing.
6. Utilities - encasements, waterproofing, slope line grouting.
7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment.
Mobile Phone:
86-13939067523
E-mail:
dany@gaodetec.com
1. Hydraulic reversing and Hydraulic drive for Vertical grouting pump. Grouting pressure and output are step-less adjustable.
2. Using rectangular agitator, makes the plant has compact structure, small size. Grouting pump has high speed and low speed by rotating ball valve switch. With the function of record and display grouting pump reciprocating times by a counter.
3.With a air cooler and a water cooler, to adapt to different working environment temperature. Mixer and agitator switch is a squeeze handle that is easy to operate and reliable.
|
Description |
Data |
|
Grouting Plant model |
GGP300/300/75PI-E |
|
Dimensions |
2330x1260x1790mm |
|
Weight |
1125kg |
|
Mixer |
|
|
Capacity |
300L |
|
Output |
4.5m3/h |
|
Power |
7.5KW, 50Hz, 50HZ ,380V |
|
Rated Rev |
1450rpm |
|
W/C ratio |
≥0.5~1 |
|
Agitator |
|
|
Capacity |
300L |
|
Rated Rev. |
36rpm |
|
Power |
1.5KW, 50Hz, 50HZ, 380V |
|
Pump |
|
|
Output and pressure |
0-75L/min, 0-5Mpa(high-speed);0-38L/min, 0-10MPa(low-speed) |
|
Power |
11kw, 50Hz, 380V |
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
