GGP800/1200/200PI-D dam and tunnel used grout mixer pump

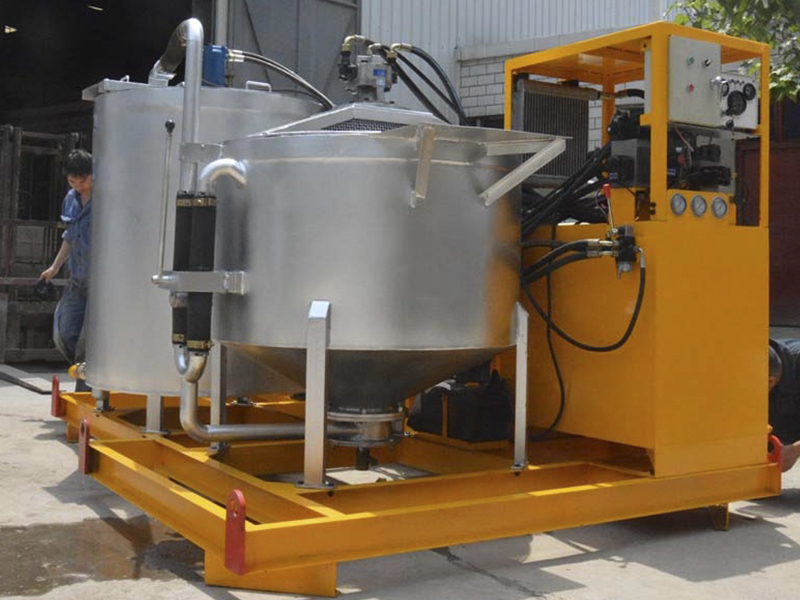

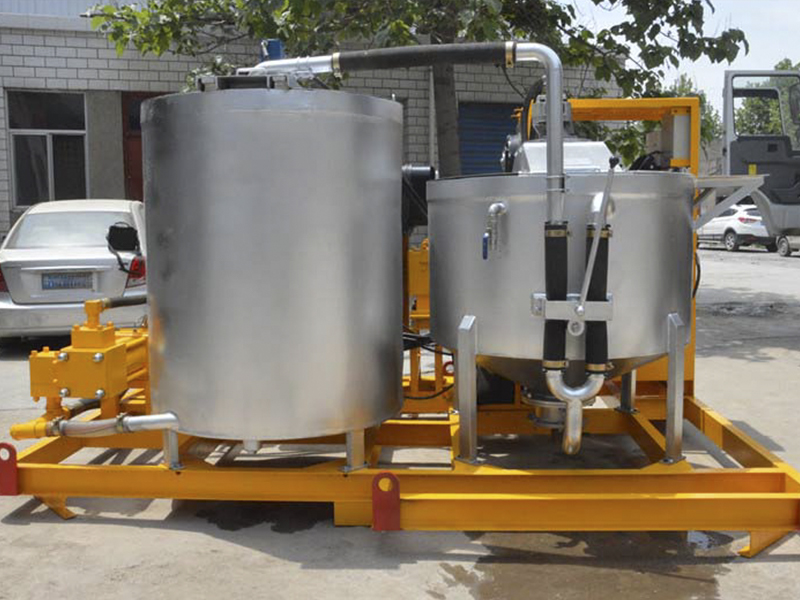

GGP800/1200/200PI-D grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is full hydraulic drive with diesel engine. Grouting pressure and displacement is step-less adjustable. Compact size and it is easy to operate. It also takes up a small space.
Mobile Phone:
86-13939067523
E-mail:
dany@gaodetec.com

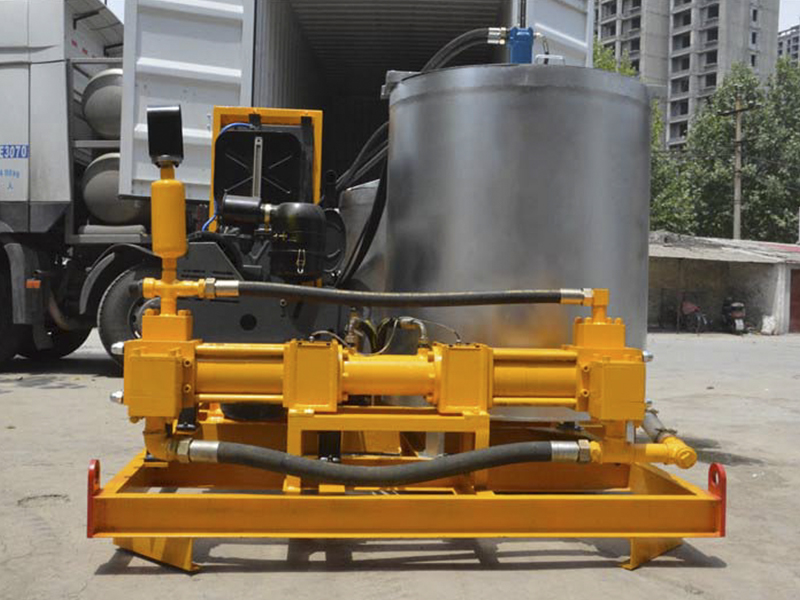

1. 55KW air cooling diesel engine as the power, it is suitable for field construction. Pump output is 0-200L/min. Pump pressure is 0-5Mpa. All step-less adjustable. Simple structure, light weight, easy maintenance. Double-cylinder and single-acting grouting pump: grouting continuous and pulse small.
2. The latest improvement design of valve chamber: It is quickly convenient cleaning. Grouting pump outlet is equipped with buffer. This can further reduce the grouting pressure fluctuations. Delivery with special tools. This can ensure change the pistons rapidly, reduce the time of replacing. Less spare parts ensure low maintenance costs.
3. High speed vortex mixer ensures mix quickly and evenly. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate. Mixer and agitator use Stainless steel material.
2. The latest improvement design of valve chamber: It is quickly convenient cleaning. Grouting pump outlet is equipped with buffer. This can further reduce the grouting pressure fluctuations. Delivery with special tools. This can ensure change the pistons rapidly, reduce the time of replacing. Less spare parts ensure low maintenance costs.
3. High speed vortex mixer ensures mix quickly and evenly. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate. Mixer and agitator use Stainless steel material.
| Type | GGP500/700/100PI-E |
| Dimensions | 2700×1750×1650mm |
| Weight | 1440kg |
|
Mixer |
|
| Capacity | 500L |
| Output | 7m3/h |
| Power | 7.5Kw, 1450rpm, 50Hz, 380V |
| Rated Rev | 1450rpm |
| W/C ratio | ≥0.5:1 |
|
Agitator |
|
| Capacity | 700L |
| Rated Rev. | 36rpm |
| Power | 1.5KW, 50Hz, 380V |
|
Pump |
|
| Output | 0-100L/min |
| Pressure | 0-5MPa |
| Power | 15kw, 50Hz, 380V |
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
