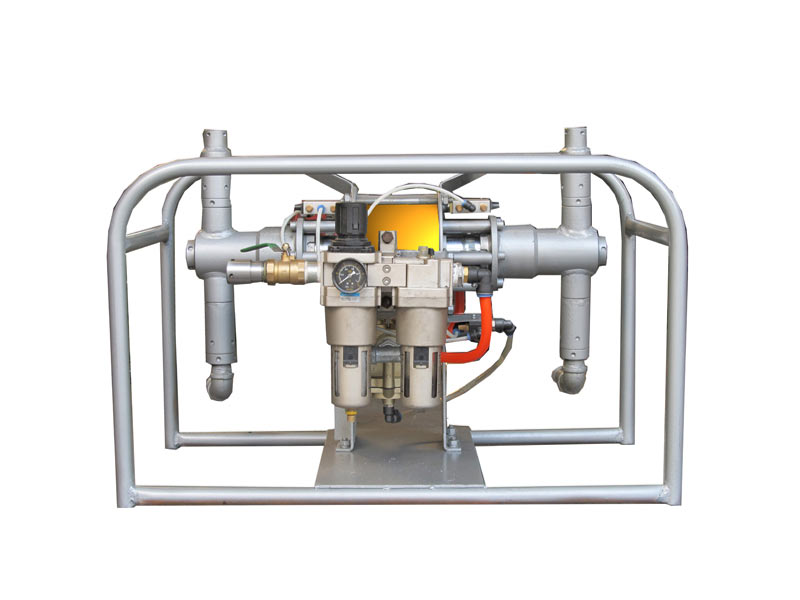

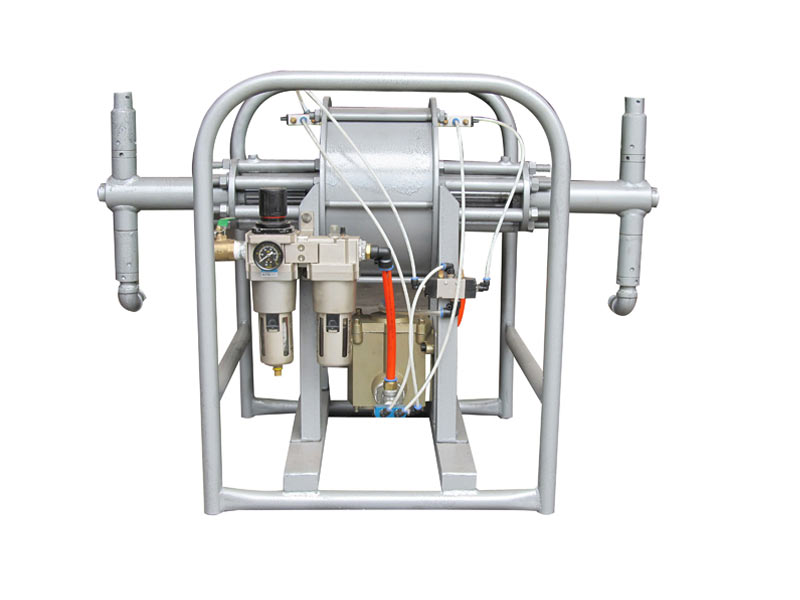

2GP series pneumatic grouting pump
2GP series pneumatic grouting pump is driven by compressed air. Thus this pump can safely use in the large water drenching and high gas/firedamp places. It can be blocked for a long time and has no heating problem.
Pneumatic injection pumps can safely use in the large water drenching and high gas/firedamp places,and can grout simple-liquid,dual-liquid and chemical grout.And it can be operated more flexibly than the conventional grouting pump. This pump transmits pressure signals by working medium (slurry and compressed air) to form closed-loop automatic control function, therefore the pump is simple in structure, can regulate timely and accurately, and has no overpressured problem.
Mobile Phone:
86-13939067523
E-mail:
[email protected]
1. The shift device of this pump has feature with air pressure automatic location, thus under the bad environment,which can also work with safety and reliability. According to the pre-seted grouting final pressure ,this pump has the function of automatic regulating output.
2. Low noise.
3. Can keep working continuously for 24 hours.
4. Safety and reliability.
5. Simple maintenance and Long life.
2. Low noise.
3. Can keep working continuously for 24 hours.
4. Safety and reliability.
5. Simple maintenance and Long life.
|
Technical Sheet |
|||||||
| 0.5m³ ,0.7m³(portable) , 1.5m³ pneumatic dual-slurry grout pump,3.0m³ pneumatic dual-slurry grout pump | |||||||
| air consumption (m³/min) | air pressure (MPa) | overall dimension(m) | weight (kg) | Slurry and Sodium silicate ratio | |||
| 0.5 | 0.2～0.63 | 0.6x0.3x0.4 | 18 | 1:1 | |||
| 0.7 | 0.8x0.4x0.7 | 41 | 1:1～1:0.75 | ||||
| 1.5 | 1.3x0.5x1.0 | 83 | 1:1～1:0.5 | ||||
| 3 | 1.3x0.6x1.2 | 110 | 1:1～1:0.5 | ||||
| Accessories | Suction hose，filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge. | ||||||
| air consumption (m³/min) | Model | Rated output | Rated pressure(MPa) | ||||
| L/min | M3/h | ||||||
| 0.5m³(portable) | 2GP10/5 | 10 | 0.6 | 5 | |||
| 0.7m³(portable) | ☆2GP50/4 | 50 | 3.0 | 4 | |||
| ☆2GP24/10 | 24 | 1.44 | 10 | ||||
| 1.5m³ | ☆2GP130/3 | 130 | 7.8 | 3.5 | |||
| ☆2GP96/5 | 96 | 5.78 | 5 | ||||
| ☆2GP70/7 | 70 | 4.2 | 7 | ||||
| ☆2GP40/11 | 40 | 2.4 | 11 | ||||
| 3.0m³ | ☆2GP150/6 | 150 | 9.0 | 6 | |||
| ☆2GP110/8 | 110 | 6.6 | 8 | ||||
| ☆2GP80/11 | 80 | 4.8 | 11 | ||||
| ☆2GP50/19 | 50 | 3.0 | 19 | ||||
| ☆2GP30/30 | 30 | 1.8 | 30 | ||||
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
