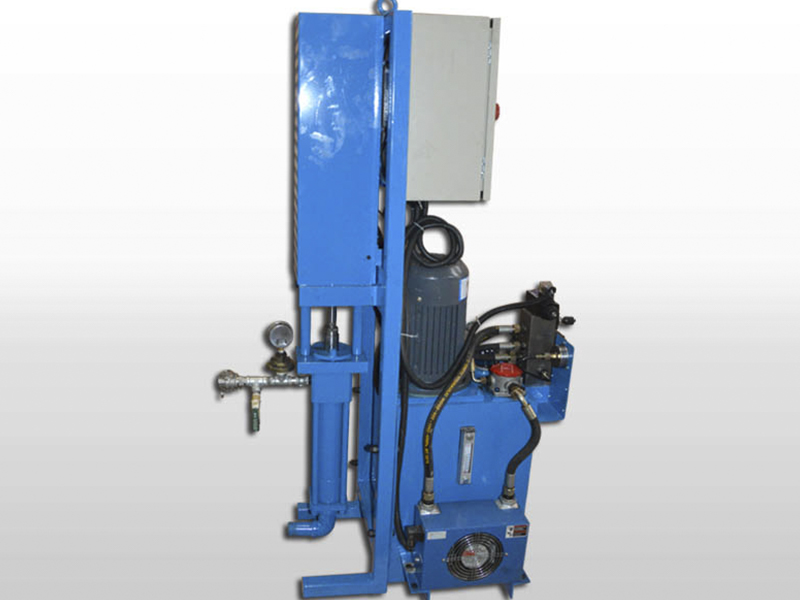

GGP10/40-E mini grout pump
GGP10-40/E grout pump is a customized mini type grouting pump, and mainly used for injecting cement grout tubes, repairing damaged / dangerous structures, consolidating or weatherproofing walls, rocks, dams, and tunnels, pumping special products for anchoring and seals.
GGP10-40/E grout pump is mainly used for grouting, repairing damaged / dangerous structures, tamping or weatherproof walls, rocks, dams, tunnels and so on, providing special products for anchoring and plugging. It can also be used in teaching and research.GGP10-40/E grout pump is operated more flexibly than the traditional grouting pump.
Mobile Phone:
86-13939067523
E-mail:
[email protected]
1. Grouting pressure, displacement is stepless adjustable. Compact size, light weight and easy to maintain
2. Low maintenance cost. With counting function, it can record the reciprocating number of the
3. Continuous output and small pulse. Hydraulic driven and control.
2. Low maintenance cost. With counting function, it can record the reciprocating number of the
3. Continuous output and small pulse. Hydraulic driven and control.
|
GGP10/40-E Grout pump |
|
| Adjustable pressure | 0-40bar |
| Adjustable flow rate | 0-10L/min |
| Cylinder diameter | 63mm |
| Stroke | 150mm |
| Power unit | 3Kw |
| Oil tank | 49L |
| Overall dimension | 900*500*1450mm |
| Weight | 199kg |
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
