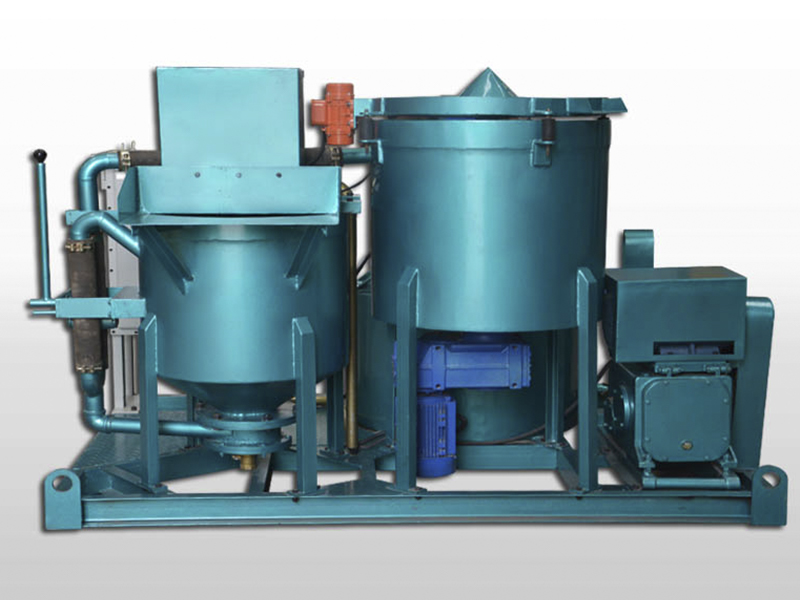

GGP220/300/300PI-E high speed mortar grout station
GGP220/300/300PI-E mortar grout station is designed based on high speed vortex mixer and mortar mixer. It achieves continuous and high speed mortar mixing and grouting. It is mainly used in municipal, highway, railway, hydropower, construction, mining and other construction site for mortar grout. This grout station is driven by electric motor, mechanical plunger type injection pump. Compact size, easy to operate and also takes small place. Grout pump adopts frequency control, so the flow is step-less adjustable.
It is suitable for making cement mixture and mortar cement mixture. Working principle is: Evenly mixed slurry convey to No. 1 agitator. Add sand to No. 1 agitator and mix. Evenly mixed mortar cement mixture flows into No. 2 agitator through discharge outlet. Grouting pump sucks mixture from No. 2 agitator and finish the grouting, gunite and backfilling etc. project. Grouting, while the next round of mixing can be carried out, thus the grout station achieves continuous work.
1. Grouting pressure, output is stepless adjustable. Simple structure, light weight, easy maintenance. Continuous output with small pulse.
2. Less spare parts ensure low maintenance costs. High speed vortex mixer ensures mix quickly and evenly. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate.
3. The motor has an overload protection function. It has wrong operation safety protection device. When the vibrating screen mesh is taken up, the machine will stop. Flameproof electric cabinet, protection grade IP56. With CE, ISO certification.
Description
|
Data
|
Grout Mixer and Pump model
|
GGP220/300/300PI-E
|
Dimensions
|
2350x1830x1600mm
|
Weight
|
1275kg
|
Mixer
|
Capacity
|
220L
|
Output
|
4m3/h
|
Power
|
5.5Kw, 1450rpm, 50Hz, 380V
|
Rated Rev
|
1450rpm
|
W/C ratio
|
0.5~1
|
Cement/Sand
|
≥1
|
No.1 Agitator
|
Capacity
|
300L
|
Rated Rev.
|
49rpm
|
Power
|
3KW, 50Hz, 380V
|
No.2 Agitator
|
Capacity
|
300L
|
Rated Rev.
|
36rpm
|
Power
|
3KW, 50Hz, 380V
|
Pump
|
Max. output
|
50L/min
|
Max. pressure
|
1.5MPa
|
Power
|
4kw, 50Hz, 380V
|
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
