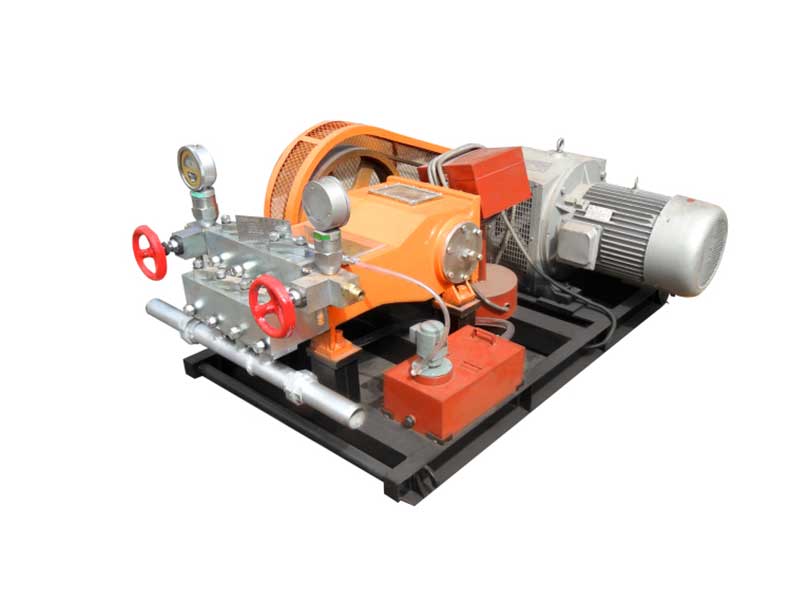

XPB-10 high pressure large output grouting pump
XPB-10 Grouting Pump is a kind of high pressure large output grout pump. At different speeds, it is suitable for different pressure and flow rate.
This pump is applied in the working field of filling slurry and the second grouting with low pressure and large output.
Mobile Phone:
86-13939067523
E-mail:
[email protected]
1. Three plunger.
2. Ball valve. Simple maintenance and Long life.
3.Small volume and light weight, convenient for moving.
2. Ball valve. Simple maintenance and Long life.
3.Small volume and light weight, convenient for moving.
| Max.motor speed | 1300r/min | Plunger stroke | 85mm | |||
| Theoretical output | Motor power | Plunger diameter | ||||
| 11kw | 15kw | 18.5kw | 22kw | |||
| M³/h | L/min | Rated output pressure(kgf/cm²) | ||||
| 9.6 | 160 | 25 | 35 | 45 | 52 | 50mm |
| 7.8 | 130 | 32 | 45 | 55 | 65 | 45mm |
| 6 | 100 | 46 | 55 | 70 | 85 | 40mm |
| 5.4 | 90 | 50 | 65 | 80 | 95 | 38mm |
| 4.8 | 80 | 58 | 80 | 95 | // | 35mm |
| 3.3 | 55 | 80 | // | // | // | 30mm |
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
