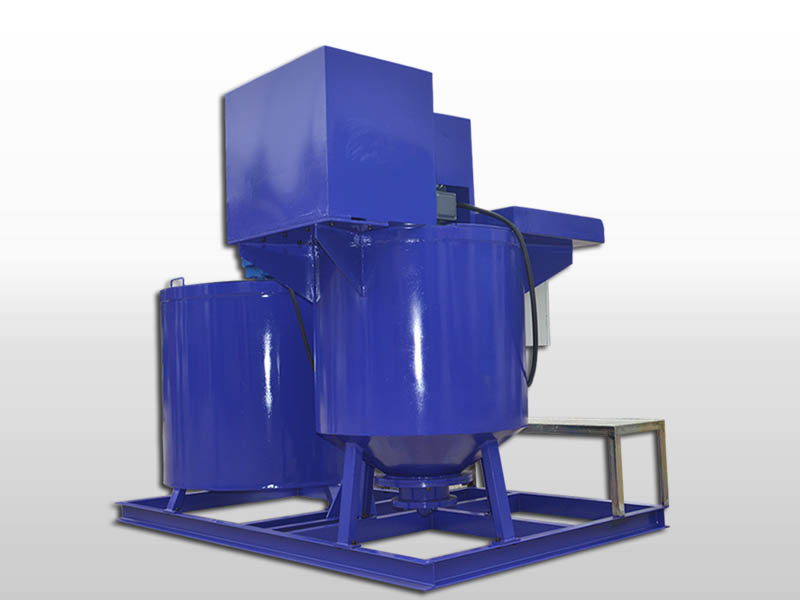

GMA500-1000E electric cement grout mixer and agitator
GMA500-1000E cement mixer and agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 1000 liters agitator, thus the mixing work can continuously be done.
Mobile Phone:
86-13939067523
E-mail:
[email protected]
1. One-man operation.
2. Extremely fast mixing.
3. No seals to wear out from grout.
4. Simple grout transfer from mixer to agitator.
2. Extremely fast mixing.
3. No seals to wear out from grout.
4. Simple grout transfer from mixer to agitator.
|
500L MIXER |
|
| Rated capacity | 500 liter |
| Acceptable W/C ratio | ≥0.5:1 |
| Rated Rev. | 1500rpm |
| Power | 7.5kW |
| Pump Pressure | ＞0.2Mpa |
| Water tank | 250L |
|
1000L AGITATOR |
|
| Rated capacity | 1000 liter |
| Rated Rev. | 35rpm |
| Power | 1.5kW |
|
MIXER&AGITATOR |
|
| Dimension | 2500*1920*2280mm |
| Weight | 980kg |
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
