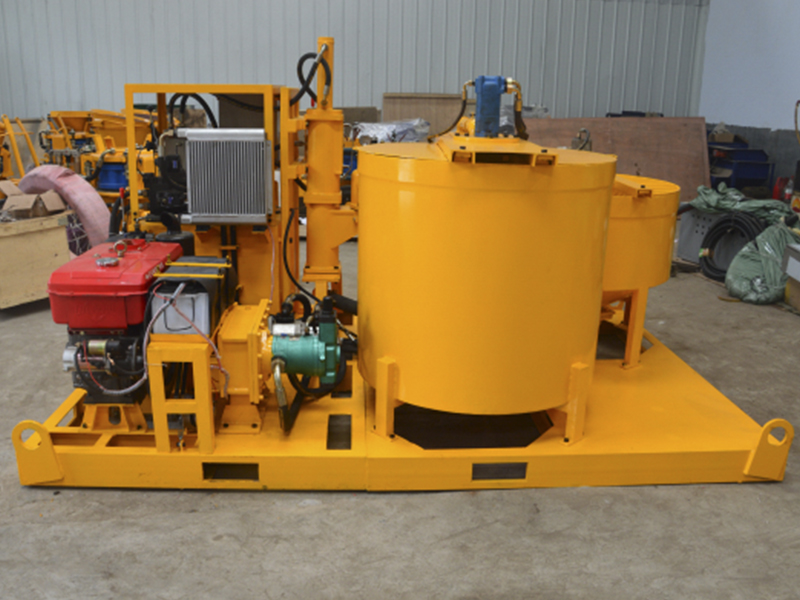

GGP400/700/100PL-D adjustable pressure and output hydraulic cement grout mixer pump
GGP400/700/100PL-D grout mixer pump is combination of mixer, agitator and hydraulic plunger grout pump in one plant. It mainly is suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives. This grout operating principle isthat high shear mixer is used to obtain cement paste through the intense mixing of water and cement or bentonite and the obtained mix is transported into an agitato.
otechnical - deep well casing, monitor wells, well sealing and abandonment.
Mobile Phone:
86-13939067523
E-mail:
[email protected]
1. Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame. Have low pressure and high pressure, stepless speed regulation. Yuken relief valve and directional valve for hydraulic system of grout pump.
2. Butterfly valve of mixer and agitator. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.
3. Full hydraulic drive, diesel engine. Operation and maintenance are simple. With ISO, CE certificate.
2. Butterfly valve of mixer and agitator. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.
3. Full hydraulic drive, diesel engine. Operation and maintenance are simple. With ISO, CE certificate.
|
Type |
GGP400/700/100PL-D Grout Plant |
| Diesel engine | 25kw/36HP |
| Rotating speed of engine | 2200r/min |
| Dimensions | 2900*1900*1750mm |
| Weight | 1900kg |
|
Mixer |
|
| Capacity | 400L |
| W/C ratio | 0.5-1 |
| Rated Rev. | 1500rpm |
|
Agitator |
|
| Volume | 700L |
| Rated Rev. | 36rpm |
|
Pump |
|
| Type | Hydraulic Plunger pump |
|
Pressure and Output |
25 Bar (low pressure) 100L/min |
| 50 Bar (high pressure) 40L/min | |
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
